H40,J55,K55 N80,L80 C90,T95,P110 Q125,V150 Carbon steel oil pipe
Casing pipe is the major structural component of a well. The API 5CT Casing pipe is a large-diameter steel pipe that serves as the structural retainer for the walls of oil and gas wells, and typically held into place with cement.
API 5CT casing is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place.
The cost of casing is a major part of the overall well cost, so selection of casing size, grade, connectors, and setting depth is a primary engineering and economic consideration. KPE supply API 5CT standard casing pipe with assured quality and competive price. Rely on good relationship with domestic big mills/factories. Your honored customers' need is our goal to work for with our best efforts!
1.Specification range:OD: 42.16 MM - 510.0 MM WT: 3.56MM-16MM
2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
3. Executive standards: API 5CT, GB, ISO11960, GOST
4. Thread connection: NU, EU,IJ
5. Length: R1, R2, R3
6. Testing: NDT etc related rules of API 5CT and 5B
7.Type:seamless pipe
Features
- Production complies with the provisions under the Standard API 5DP AND SPEC 7-1.
- Internal coating TK34, PM200, PM350 are available, or according to client requirement request
- hardbanding "ANKE" 100XT 150XT 300XT 350XT, DURABAND NC, OTW12, TCS series are available.
- magnetic partical inspection, hardness inspection, Automatic ultrasonic inspection, welding report will be provided
Product Parameters
| Size | Weight
(lb/ft) | Grade | Wall thickness | Upset types |
| Inch | mm | Inch | mm |
| 2 3/8 | 60.3 | 6.65 | E.X.G.S | 0.28 | 7.11 | EU |
| 2 7/8 | 73 | 10.4 | E.X.G.S | 0.362 | 9.19 | IU,EU |
| 3 1/2 | 88.9 | 9.5 | E | 0.254 | 6.45 | IU,EU |
| 3 1/2 | 88.9 | 13.3 | E.X.G.S | 0.368 | 9.35 | IU,EU |
| 3 1/2 | 88.9 | 15.5 | E | 0.449 | 11.4 | IU,EU |
| 3 1/2 | 88.9 | 15.5 | X.G.S | 0.449 | 11.4 | EU,IEU |
| 4 | 101.6 | 14 | E.X.G.S | 0.33 | 8.38 | IU,EU |
| 4 1/2 | 114.3 | 13.75 | E | 0.271 | 6.88 | IU,EU |
| 4 1/2 | 114.3 | 16 | E.X.G.S | 0.337 | 8.56 | EU,IEU |
| 4 1/2 | 114.3 | 20 | E.X.G.S | 0.43 | 10.92 | EU,IEU |
| 5 | 127 | 16.25 | X.G.S | 0.296 | 7.52 | EU |
| 5 | 127 | 19.5 | E | 0.362 | 9.19 | IEU |
| 5 | 127 | 19.5 | X.G.S | 0.362 | 9.19 | EU,IEU |
| 5 | 127 | 25.6 | E | 0.5 | 12.7 | IEU |
| 5 | 127 | 25.6 | X,G,S | 0.5 | 12.7 | EU,IEU |

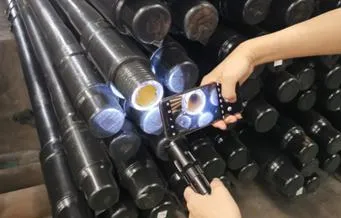

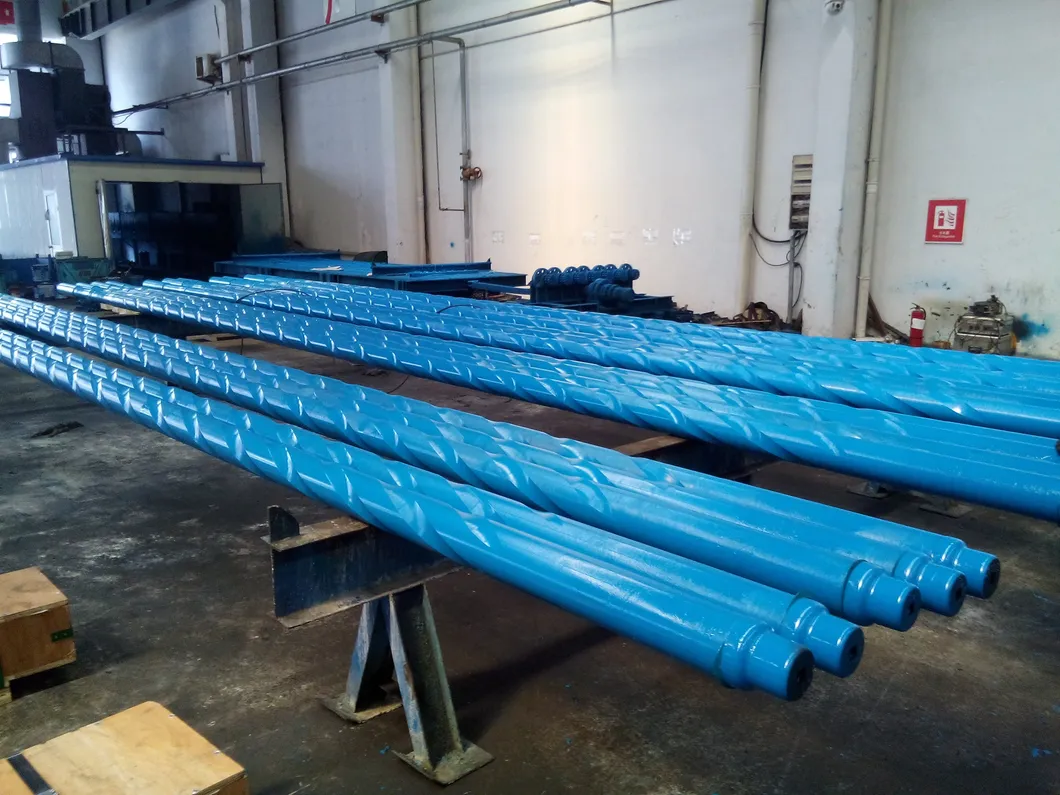

Detailed Photos
Related Products We Can Supply
DRILL COLLAR, NO MAGNETIC DRILL COLLAR. SLICK AND SPIRAL TYPE

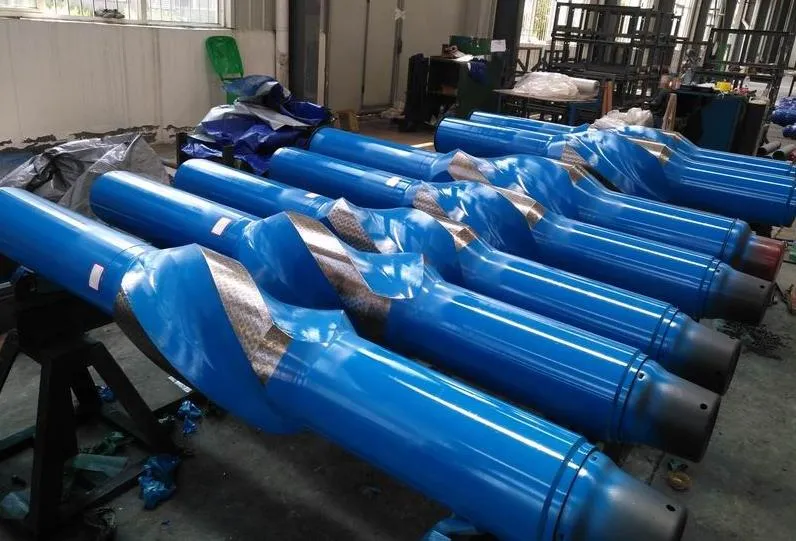

KELLY PIPE AND STABILIZER
